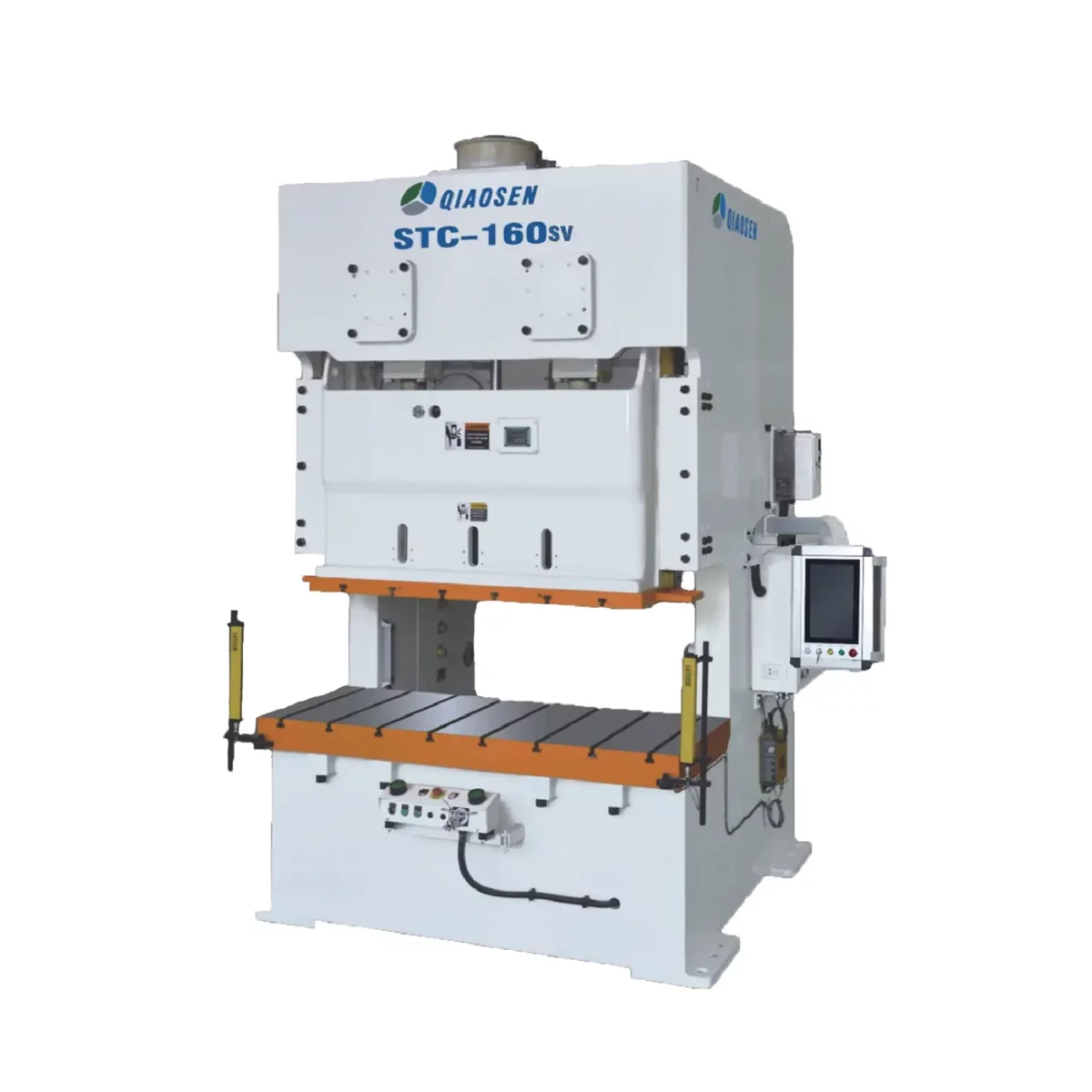

C Frame Double Crank Servo Press
Basic Attributes
- 型号 STCSV
- 型号 STCSV
- 型号 STCSV
- 冲压机类型 Pneumatic Type
- 冲压机类型 Pneumatic Type
- 加压能力 110-315 ton
- 加压能力 110-315 ton
- 行程长度 180-280 mm
- 行程长度 180-280 mm
- 冲压速度 40-100 S.P.M.
- 冲压速度 40-100 S.P.M.
- 控制系统 Siemens PLC
- 控制系统 Siemens PLC
- 驱动系统 Siemens motor
- 驱动系统 Siemens motor
Product Overview
STC-Servo-Series: 110~315 Tons
The STC-sv series utilizes advanced forming technologies, aiming to create value for customers through the integration of reliable engineering and Servo Drive technology. The user-friendly HMI, equipped with a 15.6-inch color touch screen, ensures easy operation, allowing users to choose suitable slide motion profiles for increased productivity.
The STC Servo-Series is a gap-frame Servo press, equipped with a 15.6-inch touch screen. It features 9 built-in motion curve processing modes and can be augmented with automated transfer production lines to enhance capacity.
With a robust direct Servo drive transmission, it offers both low speed and high torque capabilities. The Servo press can also meet the requirements of toggle press and multi-link press machines. Compared to these two types of mechanical press structures, the Servo press can fulfill a broader range of stamping processes, characterized by extreme speed control and greater energy efficiency.
Product Specifications
| Specifications | Unit | STC-110SV | STC-160SV | STC-200SV | STC-260SV | STC-315SV |
| Punching Capacity | Tons | 110 | 160 | 200 | 250 | 315 |
| Ability Occurence Point | mm | 4 | 5 | 5 | 5.5 | 6 |
| Slider Strokes Per Minute(Oscillating mode) | S.P.M | ~100 | ~100 | ~95 | ~70 | ~65 |
| Slider Strokes Per Minute(Full range) | S.P.M | ~50 | ~50 | ~50 | ~40 | ~40 |
| Long Slider Length | mm | 180 | 200 | 250 | 280 | 280 |
| Max Mold Height | mm | 400 | 450 | 500 | 550 | 550 |
| Slider Adjustment Amount | mm | 100 | 100 | 120 | 120 | 120 |
| Up Platform Area | mm | 1400*500 | 1600*550 | 1850*650 | 2100*700 | 2200*700 |
| Down Platform Area | mm | 1800*650 | 2000*760 | 2400*840 | 2700*900 | 2800*900 |
| Servomotor Torque | Nm | 5000 | 9000 | 12500 | 16000 | 20500 |
| Air Pressure | kg/c㎡ | 6 | 6 | 6 | 6 | 6 |
NOTE: Our company is prepared to conduct research and improvement work at any given time. As a result, the size design characteristics outlined in this catalogue may be subject to change without prior notice.
