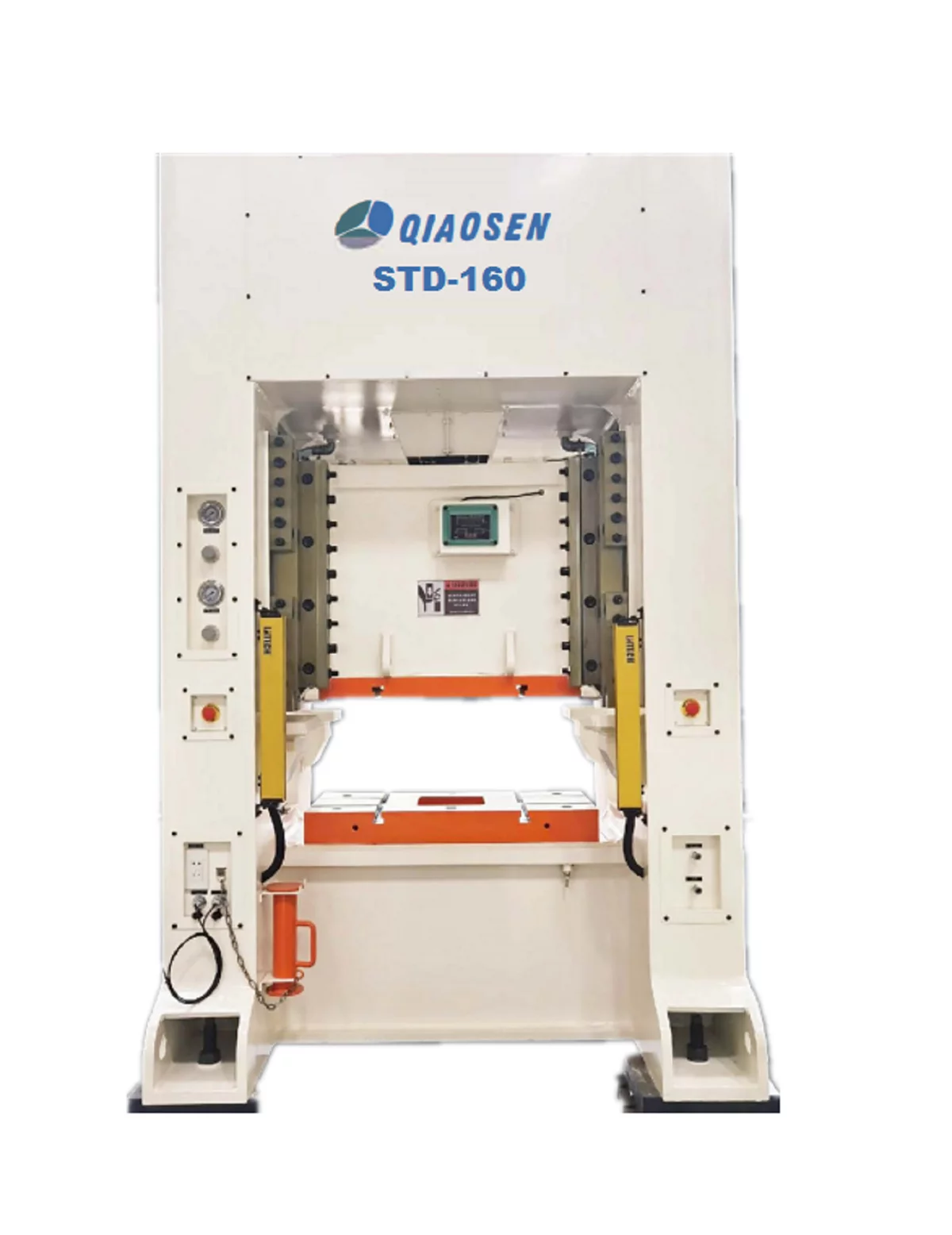

H-Frame Single Crank Press
Basic Attributes
- 型号 STD
- 型号 STD
- 型号 STD
- 冲压机类型 H-Frame Single Crank Pneumatic Press
- 冲压机类型 H-Frame Single Crank Pneumatic Press
- 加压能力 110-600 ton
- 加压能力 110-600 ton
- 行程长度 80-300 mm
- 行程长度 80-300 mm
- 冲压速度 20-90 S.P.M.
- 冲压速度 20-90 S.P.M.
- 控制系统 Siemens PLC
- 控制系统 Siemens PLC
- 驱动系统 Siemens Motor
- 驱动系统 Siemens Motor
Product Overview
STD-Series: 80-630 Tons
The STD series represents straight side solid frame crank presses, also known as H-frame single crank presses. These presses are typically designed for sheet metal stamping applications, accommodati various processes such as punching, forming, blanking, bending, drawing, and trimming on small single pieces of thin steel plate and progressive die parts. Suitable for applications involving auto single stroke, hand in die operation, in-die transfer, and transfer system (robotic system).
Product Specifications
| Specifications | Unit | STD-110s | STD-110h | STD-160s | STD-160h | STD-200s | STD-200h | STD-250s | STD-250h |
| Punching Capacity | Tons | 110 | 110 | 160 | 160 | 200 | 200 | 250 | 250 |
| Ability Occurence Point | mm | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 |
| Slider Strokes Per Minute | S.P.M | 30-60 | 60-90 | 20-50 | 40-70 | 25-50 | 40-80 | 20-45 | 30-60 |
| Long Slider Length | mm | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 |
| Max Mold Height | mm | 350 | 300 | 450 | 400 | 450 | 400 | 450 | 400 |
| Slider Adjustment Amount | mm | 80 | 80 | 100 | 100 | 120 | 120 | 120 | 120 |
| Up Platform Area | mm | 650x500 | 650x500 | 750x700 | 750x700 | 750x700 | 750x700 | 800x800 | 800x800 |
| Down Platform Area | mm | 850x600 | 850x600 | 850x800 | 850x800 | 900x800 | 900x800 | 1000x900 | 1000x900 |
| Main Motor Power | kW×P | 11x4 | 11x4 | 15x4 | 15x4 | 18.5x4 | 18.5x4 | 22x4 | 22x4 |
| Air Pressure | kg/c㎡ | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
NOTE: Our company is prepared to conduct research and improvement work at any given time. As a result, the size design characteristics outlined in this catalogue may be subject to change without prior notice.
| Specifications | Unit | STD-300s | STD-300h | STD-400s | STD-400h | STD-500s | STD-500h | STD-630s | STD-630h |
| Punching Capacity | Tons | 300 | 300 | 400 | 400 | 500 | 500 | 630 | 630 |
| Ability Occurence Point | mm | 7 | 3.5 | 8 | 4 | 10 | 5 | 10 | 5 |
| Slider Strokes Per Minute | S.P.M | 20-40 | 30-60 | 20-40 | 30-60 | 20-40 | 30-60 | 20-40 | 30-60 |
| Long Slider Length | mm | 300 | 150 | 300 | 150 | 300 | 150 | 300 | 150 |
| Max Mold Height | mm | 550 | 450 | 550 | 450 | 600 | 500 | 650 | 550 |
| Slider Adjustment Amount | mm | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Up Platform Area | mm | 900x900 | 900x900 | 1000x900 | 1000x900 | 1200x1000 | 1200x1000 | 1200x1000 | 1200x1000 |
| Down Platform Area | mm | 1100x1000 | 1100x1000 | 1200x1000 | 1200x1000 | 1400x1000 | 1400x1000 | 1400x1000 | 1400x1000 |
| Main Motor Power | kW×P | 30x4 | 30x4 | 37x4 | 37x4 | 45X4 | 45X4 | 55x4 | 55x4 |
| Air Pressure | kg/c㎡ | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
NOTE: Our company is prepared to conduct research and improvement work at any given time. As a result, the size design characteristics outlined in this catalogue may be subject to change without prior notice.
